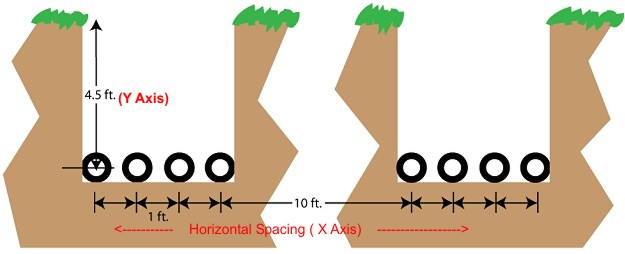

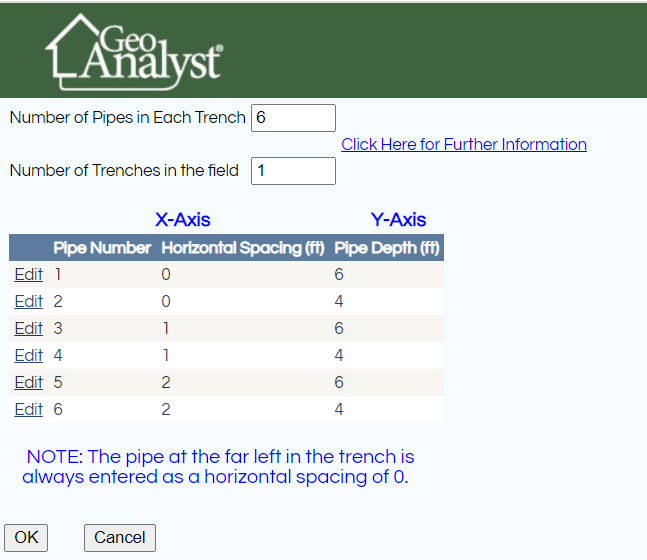

If none of the pre-configured horizontal loops fit the particular application, a user-defined horizontal loop may be entered as Cartesian coordinates (X and Y axis). The screen below shows how the user-defined loop is entered. Below the user-defined screen is an example of two four-pipe trenches.
|
Horizontal Spacing |
Pipe Depth |
Pipe 1 |
0 |
4.5 |
Pipe 2 |
1 |
4.5 |
Pipe 3 |
2 |
4.5 |
Pipe 4 |
3 |
4.5 |
Pipe 5 |
13 |
4.5 |
Pipe 6 |
14 |
4.5 |
Pipe 7 |
15 |
4.5 |
Pipe 8 |
16 |
4.5 |
